Upgrading your turbo system with premium silicone hoses is one of the most cost-effective ways to boost airflow, eliminate leaks, and improve engine reliability. However,
most turbo leaks, boost drops, and hose failures stem from incorrect sizing — not poor product quality. Choosing the right silicone hose size for your turbo ensures a tight seal, stable boost pressure, zero pipe collapse, and long service life.
In this complete guide, we break down how to measure correctly, match ID sizes, select the right hose thickness and ply rating, and avoid common sizing mistakes. Whether you are replacing stock hoses or building a custom turbo setup, this sizing tutorial will help you get a perfect fit every time.
1. Understand Turbo Silicone Hose Sizing Standard (ID vs OD)
The #1 rule in turbo silicone hose sizing: Silicone hoses are sized by Inner Diameter (ID), not Outer Diameter (OD).
All turbo piping, intercooler pipes, and vacuum ports are measured by their outer diameter. To achieve a factory-tight fit:
Hose Inner Diameter (ID) = Pipe Outer Diameter (OD)
Many beginners make the mistake of measuring the old worn hose’s inner diameter. Old hoses stretch, deform, or shrink after years of heat and pressure, so they cannot be used as a reference. Always measure the hard pipe OD directly for accurate sizing.
2. Step-by-Step Measuring Method for Perfect Sizing
Follow this professional measuring process to avoid loose fits or overly tight installation:
Step 1: Clean the turbo pipe / intercooler pipe surface
Remove dirt, oil residue, and old gasket material to ensure precise caliper measurement.
Step 2: Measure the outer diameter (OD) of the hard pipe
Use a digital caliper to measure the pipe OD at the connection end. Take 2–3 readings at different angles to eliminate oval pipe errors.
Step 3: Match the exact hose ID
Select a silicone hose with the exact matching inner diameter. Standard turbo silicone hose sizes include 3mm, 4mm, 6mm, 8mm, 10mm for vacuum lines, and 38mm, 45mm, 51mm, 57mm, 63mm for intercooler boost pipes.
Step 4: Confirm working length and angle
Avoid overstretching or excessive slack. Reserve proper length for engine vibration and thermal expansion to prevent hose tearing or disconnection.
3. Why Wrong Sizing Destroys Your Turbo Performance
Even high-quality 5-ply silicone hoses will fail if the size does not match your turbo setup:
-
Hose Too Small (Small ID): Requires forced stretching, creates permanent tension, cracks easily under high heat, and shortens service life drastically.
-
Hose Too Large (Big ID): Loose fit causes boost leaks, pressure drop, slow turbo spool, and uneven engine performance. Clamps cannot fully compensate for oversized gaps.
-
Incorrect Length / Radius: Tight bending leads to hose collapse under vacuum, blocking airflow and causing overheating or power loss.
4. Match Hose Structure & Ply Rating to Your Turbo Application
Size matching is not enough. Different turbo systems require different hose reinforcement grades:
-
Vacuum Lines (3mm–10mm ID): Standard 3-ply silicone hoses — flexible, anti-collapse, perfect for turbo vacuum control systems.
-
Low-Pressure Boost Pipes: 4-ply reinforced silicone hoses — balance flexibility and pressure resistance for daily street turbo setups.
-
High-Pressure Turbo / Racing Setups: 5-ply aramid reinforced hoses — withstand high boost pressure and extreme temperatures from -60°C to +220°C, no swelling or bursting.
Thick-wall reinforced designs prevent ballooning under maximum boost, ensuring stable turbo response and consistent power output.
5. Standard Turbo Silicone Hose Size Chart (Most Popular)
Here are the most common sizes for universal turbo, intercooler, and vacuum systems:
-
Vacuum & Breather Lines: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm ID
-
Small Turbo Inlet/Outlet: 32mm, 38mm, 45mm ID
-
Medium Intercooler Pipes: 51mm, 57mm, 60mm ID
-
Large Performance Turbo Pipes: 63mm, 70mm, 76mm ID
If your turbo setup uses non-standard piping,custom sized silicone hoses are the safest solution instead of using reducers or adapters that cause airflow turbulence.
6. Factory Direct & Custom Silicone Hose Sizing Service

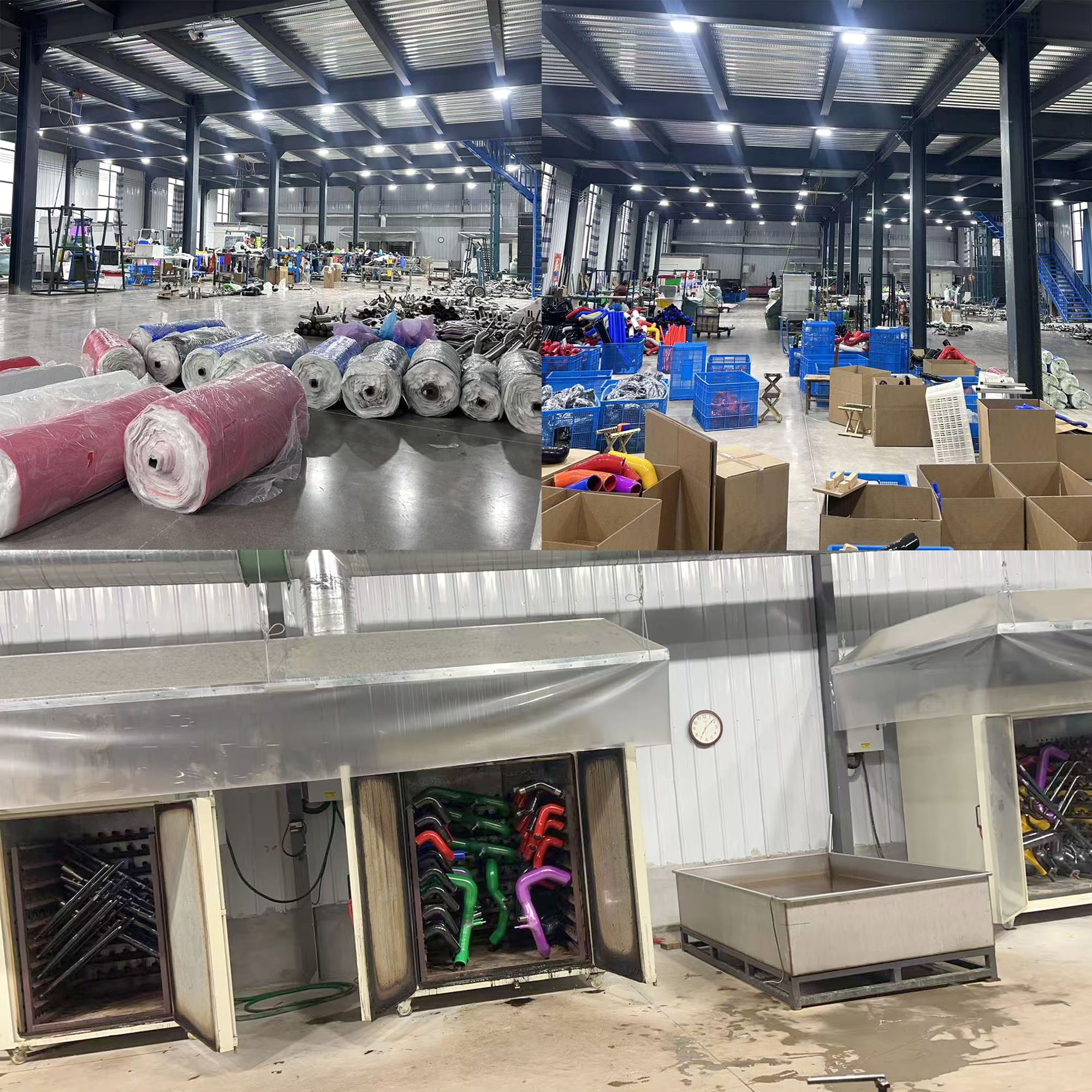

One of the biggest pain points for turbo builders is findingperfect-fit, no-compromise silicone hoses for modified or custom turbo kits. As a professional silicone hose manufacturer, we provide factory-direct standard and fully customized sizing solutions.
Our Custom Sizing Advantages:
-
Custom inner diameter, outer diameter, wall thickness, and length
-
Custom elbow angles, straight, reducer, and multi-way hose shapes
-
Custom colors, logo printing, and ply reinforcement grades
-
100% factory-made strict quality control, no middleman markup
-
OEM & ODM service for personal builds, racing teams, and wholesale orders
No more forcing ill-fitting universal hoses. Get a tailor-made silicone hose that matches your exact turbo pipe size and routing layout.
7. Final Pro Tips for Turbo Silicone Hose Installation
-
Always match hose ID to pipe OD, never reference old deformed hoses
-
Choose 4-ply or 5-ply reinforced hoses for all turbo boost systems
-
Avoid over-bending to prevent vacuum collapse
-
Use stainless steel T-bolt clamps for high-boost applications
-
Reserve expansion space for thermal movement under high temperature
